Recanalization of long iliac occlusions by humeral and radial approach- About 30 cases

Background: Complex stenosis and iliac occlusions (TASC C-D) often require surgical revascularization. Since 2007, several studies have studied the performance of endovascular revascularizations via brachial or radial anterograde approach with a good success rate.

Material and methods: We performed a retrospective and analytical study, comprising a series of 30 patients who underwent an endovascular treatment within the vascular surgery department of the Military Hospital Avicenna of Marrakech Morocco between January 2014 and February 2016.

Results: During the study period, 30 patients were included. The average age of our patients was 61.8 years (42 to 83 years). We noted a male predominance with a sex-ratio M / W of 2.7. All having as risk factors cardiovascular: age, sex and smoking. The distribution of iliac lesions was dominated by primary iliac occlusions and the right iliac axis (70%) according to the TASC 2 classification; occlusions were classified as TASC C in 10 patients (33.3%) and TASC D in 20 patients (66.6%). We haddilated the occlusion by angioplasty introduced by the humeral way in 20 patients and radial in 10 patients, with placement of a stent. The success of the technique was obtained in 100% of the cases.

Background: Brachial and radial access for TASC C-D aortoiliac chronic occlusion improves the technical success rate without the need for reentry devices and remains a better option for patients at risk treatment.

Introduction

Occlusions of the iliac arteries are often symptomatic and lead to serious complications. They require surgical or endovascular revascularization.

The choice of the revascularization technique is dictated by the TASC 2 consensus, thus the TASC C and D lesions which constitute occlusions or long stenosisrequire surgical treatment.

Since 2007, several studies have studied the performance of endovascular revascularizations via brachial or radial anterograde approach with a good success rate [1-3].

The purpose of our study is to evaluate the recanalization of long iliac occlusions by the humeral or radial approach in a single arm study.

Material and Methods

We performed a retrospective and analytical study, comprising a series of 30 patients who underwent an endovascular treatment within the vascular surgery department of the Military Hospital Avicenna of Marrakech Morocco between January 2014 and February 2016.

All patients’ data were collected from patients’ medical records, as well as short- and medium-term trends and their prognostic factors.

In our study we included all the patients who had a long iliac occlusion and who received a recanalization by humeral or radial way between January 2014 and February 2016.Were excluded from the study all the patients having a surgical treatment, history of aorto-bifemoral or axillo-femoral bypass.

During the period of our study, 30 patients with long iliac occlusion were treated, twenty of whom had iliac recanalization with iliac approach and ten with radial approach.

Results

The average age of our patients was 61, 83 years with extremes ranging from (42-83 years). We noted a clear male predominance with a sex ratio of 2.7.

The main cardiovascular risk factor was smoking, found in the majority of our patients. We also noted that 60% of patients had at least three cardiovascular risk factors.

The surgical risk was calculated with ACS NSQIP (American College of Surgeons National Surgical Quality Improvement Program) surgical risk calculator, and all our patients were with high surgical risk.

Clinically 63.4% of our patients were in stage 2 of the classification of LERICHE and FONTAINE, 20% in stage 3 and 16.6% in stage 4.

The measurements of the systolic pressure index found 50% of our patients with values ​​between 0.5 and 0.75 (Table 1).

A morphological exploration was also performed either by CT or (70%), Arteriography (26.6%) and Angio MRI (3.40%).

The distribution of iliac lesions was dominated by primary iliac occlusions (Table 2) and the right iliac axis (70%) according to the TASC 2 classification; occlusions were classified as TASC C in 10 patients or (33.3%) and TASC D in 20 patients (66.6%).

The assessment of atheromatous extension was performed for all our patients, 8 patients (26.6%) had ischemic heart disease and 4 patients (13.3%) had significant carotid stenosis.

The treatment of our patients began with the diet and hygienic measures such as smoking cessation for all smoking subjects. All our patients were put on acetylsalicylic acid and statin. For unbalanced diabetic patients with oral agents were put on insulin.

Iliac recanalization was performed under local anesthesia in 27 patients (90%) and under spinal anesthesia for the remaining three (10%) who received additional surgical treatment.

The arterial approach was performed by retrograde puncture of the right humeral artery in 20 patients (66.6%) and the right radial artery in ten patients (33.3%).

Intravenous heparinization at the dose of 1 mg / kg was administered as soon as the introducer was placed, and then a 0.035 hydrophilic guide mounted on a vertebral catheter was placed up to the center of the lesion to be treated. After crossing the lesion, an 8 mm balloon angioplasty of different lengths was first performed, then a self-expanding stent was put onto place. The type of stent was chosen according to the lesion to be treated. Patients were put under CLOPIDOGREL 75 mg / day immediately after angioplasty for three months. Acetylsalicylic acid was maintained for life.

Our success rate was 100%. The early operative follow-up was with no incidents in twenty-six patients and complicated in four patients, three of whom had a hematoma of the humeral artery and only one patient presented a significant restenosis below the right primitive iliac artery PIA stent after one month, there were no death and cardiac complications.

 In the mid-term follow up all our patients showed a clinical improvement of at least one stage of LERICHE and FONTAINE classification.

A clinical checkup at 1 month, 3 months, 6 months, 12 months and 24 months post angioplasty were performed. Our primary permeability rates at 12 months were 96.6% and at 24 months were 80% (Figure 1).

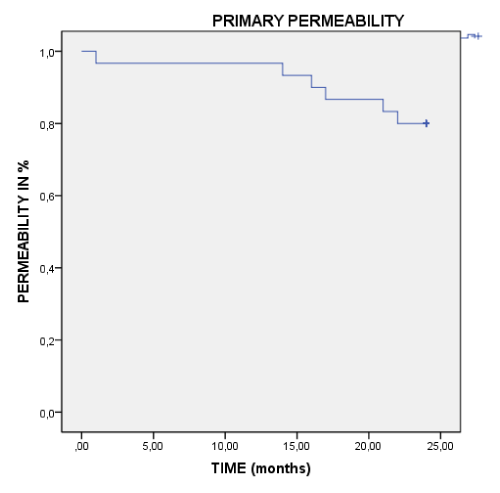

Figure 1: Primary permeability in our series.

Discussion

Several studies have demonstrated the strong association of lower limb atheromatous disease with coronary and cerebrovascular arterial disease [4-8], which increases the mortality and the incidence of major cardiovascular events in this group of patients. The five-year mortality of a patient with lower limb atheromatous disease is approximately 30%, mostly due to cardiovascular cause [9].

TACS C and D iliac occlusions are very complex lesions where surgical treatment has been shown to be effective. Few studies, such as ours, have focused on the endovascular treatment of these lesions by the humeral and radial approach; this requires preoperative planning and numerous endovascular devices.

Crossing the lesions by the hydrophilic guide with sub-marginal approach was performed for 70% of cases, the intimal approach for 30% of cases. In the Millon study, the intra-luminal lesion crossing rate was 25% [10] there is no anatomical factor capable of predicting the type of lesion crossing.

We report a technical success rate of 100%. In other similar studies this rate varied between 73% and 93% [10, 11, 12]. This success rate is due to the anterograde approach of the iliac occlusions by the humeral and radial approach, which offers a better support and facilitates the endoluminal crossing [10].

Humeral and radial access predisposes to certain complications such as stenosis, or pseudo-aneurysm at the point of introduction. In our series we report 03 cases (10%) of humeral hematoma. While the rate of these complications found in the literature was lower 2.7% [10] and 6.5% by [13].

These data from the literature confirm that humeral and radial access can be used safely in most patients.

The rupture of the iliac artery preoperatively is of the order of 2 to 6% [10, 14, 15] and remains a serious complication exposing to the risk of death by haemorrhagic shock. This rupture can be treated by covered stenting.

In our study we had no hospital mortality, whereas in the Millon study, it was 2.7%.

The usual treatment of TASC C-D iliac occlusions was surgical with a 5-year permeability rate of 80 to 85% [16].

However, it is associated with a high peri and post-operative mortality [16,17], compared to endovascular techniques [18].

Few studies compared mid and long-term results between surgical and endovascular treatment. They all demonstrated slightly higher permeability rates in favor of surgery [19,20]. Endovascular treatment remains a better option for patients at risk treatment.

1. Norgren L, Hiatt WR, Dormandy JA, Nehler MR, Harris KA, et al. (2007) TASC II Working Group. Inter-Society Consensus for the Management of Peripheral Arterial Disease (TASC II). Eur J Vasc Endovasc Surg Suppl S 33: S5-67. Link: https://goo.gl/4ReKY8
2. Jongkind V, Akkersdijk GJ, Yeung KK, Wisselink W (2010) A systematic review of endovascular treatment of extensive aortoiliacocclusive disease. J Vasc Surg 52:1376-1383. Link: https://goo.gl/3J4naE
3. Sixt S, Krankenberg H, Möhrle C, Kaspar M, Tübler T, et al. (2013) Endovascular treatmentfor extensive aortoiliac artery reconstruction: a singlecenterexperience based on 1712 interventions. J Endovasc Ther 20: 64-73. Link: https://goo.gl/RkpSMY
4. Aronow WS, Ahn C (1994) Prevalence of coexistence of coronary artery disease, peripheral artery disease andatherothrombotic brain infarction in men and women. Am J Cardiol 74: 64-65. Link: https://goo.gl/gFo1xp
5. Diehm C, Lange S, Darius H, Pittrow D, von Stritzky B, et al. (2006) Association of low ankle brachial index with high mortality in primary care. Eur Heart J 27: 1743-1749. Link: https://goo.gl/osjHe6
6. Diehm C, Schuster A, Allenberg JR, Darius H, Haberl R, et al. (2004) High prevalence of peripheral arterial disease and co-morbidity in 6880 primary care patients: cross-sectional study. Atherosclerosis 172: 95-105. Link: https://goo.gl/5q1CL1
7. Agnelli G, Cimminiello C, Meneghetti G, Urbinati S; Polyvascular Atherothrombosis Observational Survey (PATHOS) Investigators. (2006) Low anklebrachial index predicts an adverse 1-year outcome after acute coronary and cerebrovascular events. J Thromb Haemost 4: 2599-2606. Link: https://goo.gl/e8G9aw
8. Poredos P, Jug B (2007) The prevalence of peripheral arterial disease in high risk subjects and coronary or cerebrovascular patients. Angiology 58: 309-315. Link: https://goo.gl/Hp3gRP
9. Bouéea S. Rivièreb R. Laurendeau C, Gourmelen J, Delecourt T (2017) Incidence des évènements cardiovasculaires et mortalité des sujets atteints d’une artériopathie des membres inférieurs (AOMI), une analyse à partir de l’échantillon généraliste des bénéficiaires (EGB). Revepi San Pub 65: Sup 3: S118. Link: https://goo.gl/rp8Gub
10. Millon A, Della Schiava N, Brizzi V, Arsicot M, Boudjelit T, et al. (2015) The Antegrade Approach Using Transbrachial Access Improves Technical Success Rate of Endovascular Recanalization of TASC C-D Aortoiliac Occlusion in Case of Failed Femoral Access. Ann Vasc Surg 29: 1346–1352. Link: https://goo.gl/ZEvGNG
11. Krankenberg H, Schlüter M, Schwencke C, Walter D, Pascotto A, et al. (2009) Endovascular reconstruction of the aortic bifurcation in patients with Leriche syndrome. Clin Res Cardiol 98: 657-664. Link: https://goo.gl/FZmLTK
12. Moise MA, Alvarez-Tostado JA, Clair DG, Greenberg RK, Lyden SP, et al. (2009) Endovascular management of chronic infrarenal aortic occlusion. J Endovasc Ther 16: 84-92. Link: https://goo.gl/LVzBHh
13. Alvarez-Tostado JA, Moise MA, Bena JF, Pavkov ML, Greenberg RK, et al. (2009) The brachial artery: a critical access for endovascular procedures. J Vasc Surg 49: 378-385. Link: https://goo.gl/c2k1BQ
14. Chen BL, Holt HR, Day JD, Stout CL, Stokes GK, et al. (2011) Subintimal angioplasty of chronic total occlusion in iliac arteries: a safe and durable option. J Vasc Surg 53: 367-373. Link: https://goo.gl/b5ajoU
15. Sachwani GR, Hans SS, Khoury MD, et al. (2013) Results of iliacstenting and aortofemoral grafting for iliac artery occlusions. J Vasc Surg 57:1030-1037. Link: https://goo.gl/bqDC4A
16. De Vries SO, Hunink MG. (1997) Results of aortic bifurcation grafts for aortoiliac occlusive disease: a meta-analysis. J Vasc Surg 26: 558-569. Link: https://goo.gl/KkAtQK
17. Leville CD, Kashyap VS, Clair DG, Bena JF, Lyden SP, et al. (2006) Endovascular management of iliac artery occlusions: extending treatment to TransAtlantic Inter-Society Consensus class C and D patients. J Vasc Surg 43: 32-39. Link: https://goo.gl/kBLij6
18. Sixt S, Alawied AK, Rastan A, Schwarzwälder U, Kleim M, et al. (2008) Acute and long-term outcome of endovascular therapy for aortoiliac occlusive lesions stratified according to the TASC classification: a single-center experience. J Endovasc Ther 15: 408-416. Link: https://goo.gl/K4YtDm
19. Wilson SE, Wolf GL, Cross AP (1989) Percutaneneous transluminal angioplasty versus operation for peripheral arteriosclerosis .Report of a prospective randomized trial in a selected group ofpatients. J Vasc Surg 9:19. Link: https://goo.gl/WxBueA
20. Sachwani GR, Hans SS, Khoury MD, King TF, Mitsuya M, et al. (2013) Results of iliac stenting and aortofemoral grafting for iliac artery occlusions. J Vasc Surg 57: 1030-1037. Link: https://goo.gl/431YvQ
